Elbow Union 304 Stainless Steel Pipe Fittings Casting 90 Degree Female Threaded

Large Image : Elbow Union 304 Stainless Steel Pipe Fittings Casting 90 Degree Female Threaded

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	standard packaging
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Elbow Union 304 Stainless Steel Pipe Fittings Casting 90 Degree Female Threaded

Description

Material:	Stainless Steel,SS304 SS316L	Shape:	Equal,Equal/Reducer,Union,reducing,Round
Head Code:	Round,Hexagon,Square,round/square	Type:	Tee
Connection:	Welding,threaded	Technics:	Casting
Standard:	DIN,ANSI,ASTM	Size:	Customized Size,3/4",Seamless 1/2" To 24" Welded 24" To 72",1/8"~2",1/2' ~ 6'
Product Name:	Stainless Steel Square Tube 304 Stainless Steel Pipe Fitting	Application:	Oil,Petroleum,Chemical
Packing:	Wooden Case	Surface Treatment:	Polishing,Acid Pickling
Color:	Silver	Keyword:	Union,threaded Pipe Fittings,Stainless Steel Pipe Fitting
Thread:	NPT
Highlight:	304 Stainless Steel Pipe Fittings , 90 Degree Stainless Steel Pipe Fittings , Threaded Elbow Union Fitting

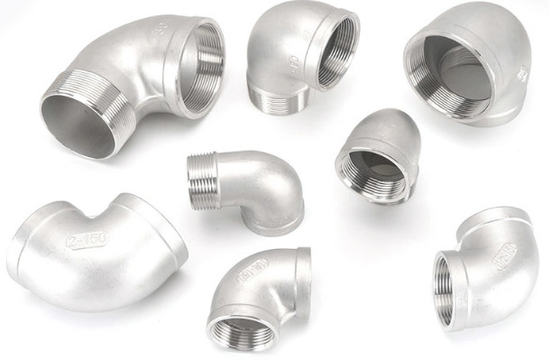

Stainless Steel Hex 90 Deg Street Elbow Unions With Equal Female Threaded, Casting

Size: 1/2"-2"

Material: 304 Stainless Steel

Connection: Female Thread

Specification: Elbow, Socket, Tee, Union, Bushing, Plug, Etc.

Application: Pipe connections for natural gas, oil, water, fire fighting, mines, etc.

The 304 elbow is a stainless steel threaded pipe fitting that changes the direction of the pipeline in the pipeline system. According to the angle, there are 45 ° and 90 °. In addition, according to engineering needs, it also includes other abnormal angles such as 60 °. The material of our threaded elbows is 304 stainless steel.

Size	DN	a	b	m	d	SW	SW1
1/4"	8	19	37	14	18	29	17
3/8'	10	23	42.5	15	21.5	33	21
1/2"	15	27	48.5	16.5	26.5	37	25
3/4 "	20	32	54.5	17.5	32	46	31
1"	25	37	61	18.5	39.5	54	38
1 1/4"	32	43	70.5	21	48.5	64	47
1 1/2 "	40	47	76.5	23	55	71	53
2"	50	56	88.5	25	67	85	65
2 1/2"	65	69	104.5	27	84	107	81
3"	80	78	117.5	29	98	120	94
4"	100	94	137.5	31	124.5	146	120
