Product Details:
|
| Certified: | Iso 9001 | Purpose: | Prestressed Concrete / Reinforce Concrete / Reinforcing Concrete |
|---|---|---|---|
| Techniques: | Bonded / Unbonded | Tendons Type: | One Strands/multiple Strands /multistrand/bars |
| Intended For: | Developers / Architects / Engineers | ||
| Highlight: | Cast Grey Iron Anchorage Post Tension System,Bonded Cast Grey Iron Anchorage Post Tension,Cast Grey Iron Anchorage Post Tension |
||
bonded post tensioning system
what is post-tensioning
post tensioning is a technique for reinforcing concrete. post-tensioning tendons, which are prestressing steel cables inside plastic ducts or sleeves, are positioned in the forms before the concrete is placed. afterwards, once the concrete has gained strength but before the service loads are applied, the cables are pulled tight, or tensioned, and anchored against the outer edges of the concrete.
post-tensioning is a form of prestressing. prestressing simply means that the steel is stressed (pulled or tensioned) before the concrete has to support the service loads. most precast, prestressed concrete is actually pre-tensioned-the steel is pulled before the concrete is poured. post-tensioned concrete means that the concrete is poured and then the tension is applied-but it is still stressed before the loads are applied so it is still prestressed.
for an excellent overview of post tensioning, visit the fuhua post-tensioning institute.
| name | bonded post tensioning system |
| certified | ISO 9001 |

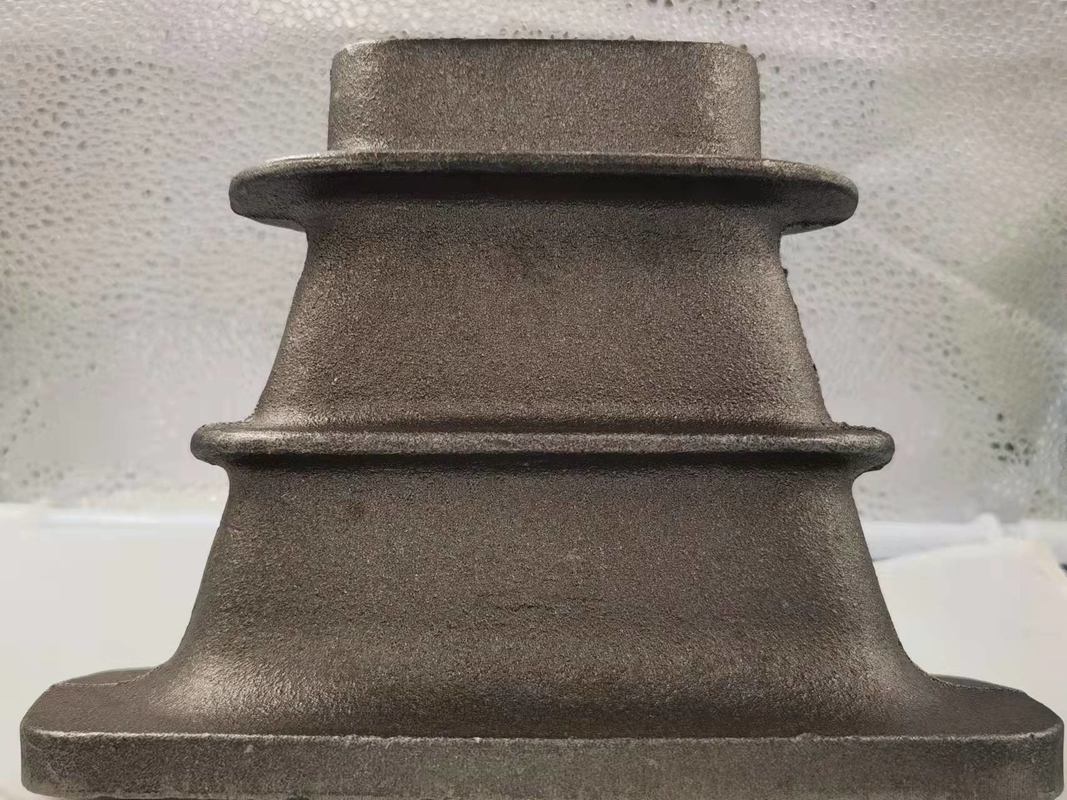

| material | Cast grey iron |
| type | system. |
| Magnel system. | |
| Leonhardt system. | |
| Lee-McCall system. | |
| Gifford-Udall system. | |
| purpose | prestressed concrete |
| reinforce concrete | |
| reinforcing concrete | |
| techniques | bonded |
| unbonded | |
| tendons type | one strands |
| multiple strands | |
| multistrand | |
| bars | |
| use industry | bridges |
| elevated slabs (parking structures and residential or commercial buildings) | |
| residential foundations | |
| walls, and columns. | |
| high rise | |
| multi family | |
| parking garages | |
| hotels | |
| offices | |
| condominiums | |
| intended for | developers |
| architects | |
| engineers |
FuHua Systems’ Unbonded Monostrand System utilizes the latest extrusion technology to produce unbonded tendons with a uniform coating of abrasion resistant, high density polyethylene sheathing over a low friction, corrosion inhibiting lubricant. All unbonded post tension tendons are fabricated according to the governing ASTM and PTI Standards in our PTI Certified Plant.
Fabricated tendons are tagged, bundled and delivered by construction sequence for ease of field placement.
outstanding support
do you have questions about post-tensioning systems? get the best answers possible directly from our team.
