Plate Post Tension Wedges Prestressed Anchorage Post Tensioning Products

Large Image : Plate Post Tension Wedges Prestressed Anchorage Post Tensioning Products

Product Details:

Place of Origin:	China
Brand Name:	fuhua
Certification:	ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	standard packaging
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Plate Post Tension Wedges Prestressed Anchorage Post Tensioning Products

Description

Name:	Anchorage Plate Wedges For Post Tension Prestressed Bearing Plate Wedges	Keyword:	Post Tension Wedges
Applicable Industry:	Construction And Mining Industry	Material:	20CrMnTi
Surface Hardness:	58-63hrc	Manufacturing Process:	Cold Forging Process
Feature:	Reinforcement Much Tougher And Strength Enhanced	Packaging Method:	Put Post-tension Wedges In A Plastic Bucket With A Sealing Lid, Then In Wooden Box
Highlight:	Plate Post Tension Wedges , Anchorage Post Tension Wedges , Prestressed Post Tensioning Products

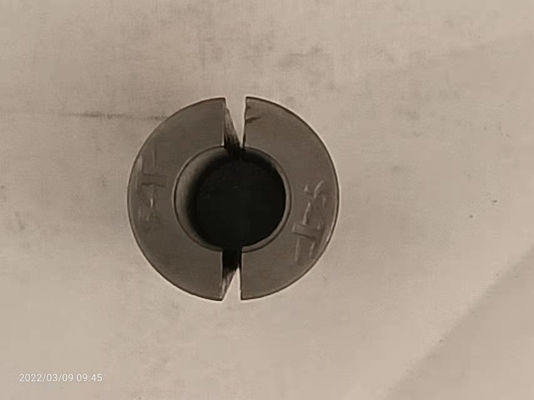

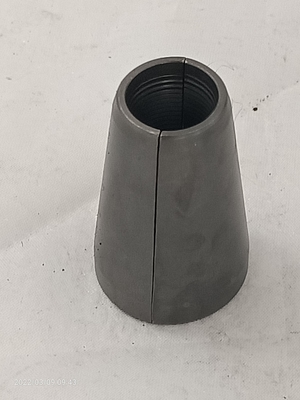

Anchorage Plate Wedges For Post Tension Prestressed Bearing Plate Wedges

critical quality parameters of post-tension wedge are surface hardness, case-hardens depth, and teeth sharpness. to make the finished anchor block wedge meet the these requirements, heat-treatment factory must provide test certification and report for each

in construction practice, operators will put wedges in tapered hole of the anchor block or anchor head when hydraulic stressing jack prestress steel strand and reach the nominated tensile strength. once hydraulic stressing jack releases force, the serration on wedges will hold up strand to prevent it back to its original status. as a result, the tensioned cable transfers stressing force on concrete members.

name	anchorage plate wedges for post tension prestressed bearing plate wedges
keyword	post tension wedges
applicable industry	construction and mining industry
material	20CrMnTi
surface hardness	58-63hrc
manufacturing process	cold forging process
feature	reinforcement much tougher and strength enhanced
shape	cylindrical
packaging method	put post-tension wedges in a plastic bucket with a sealing lid, then in wooden box

Plate Post Tension Wedges Prestressed Anchorage Post Tensioning Products 0
